Function

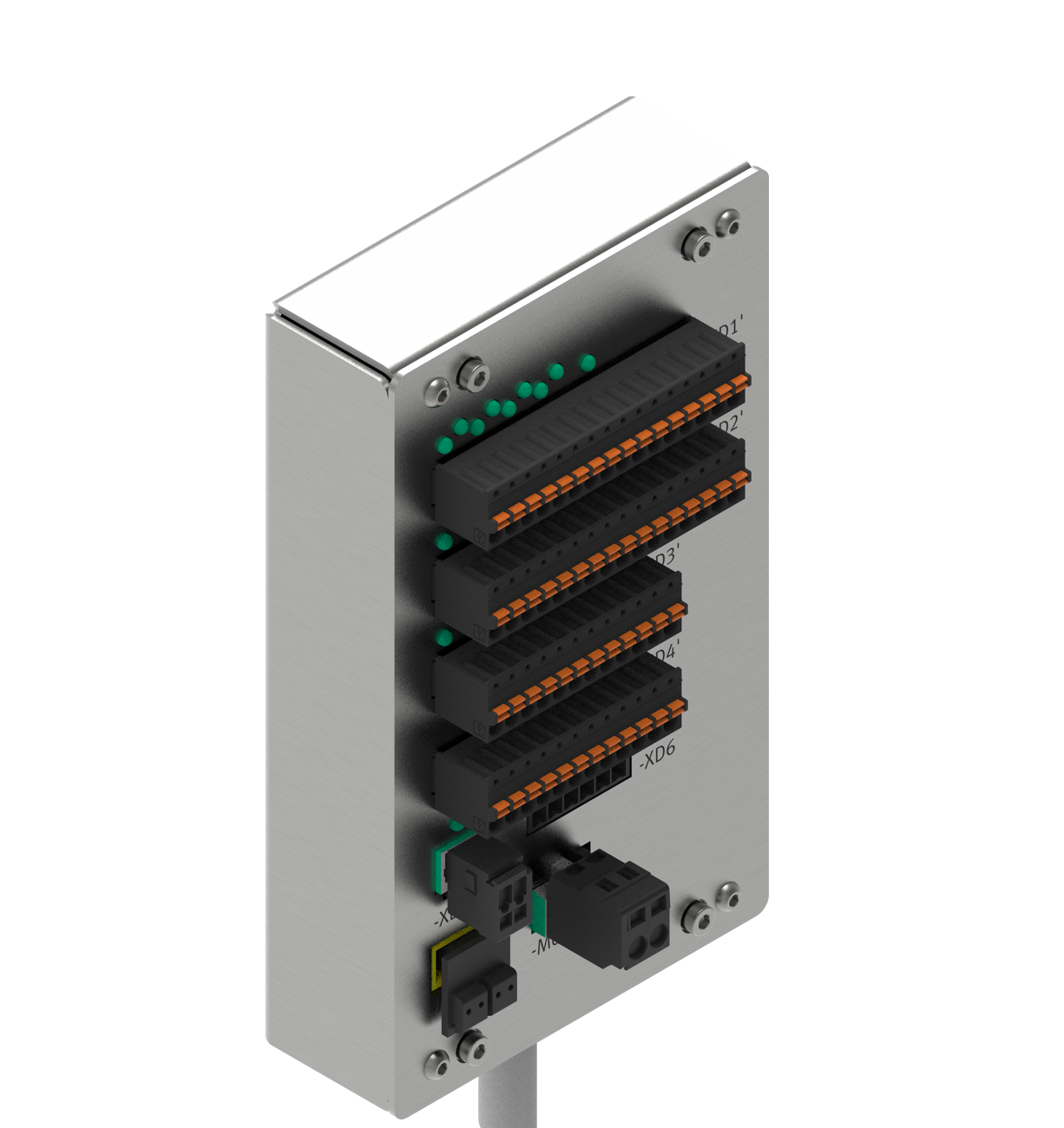

The Interface Box can be integrated into the Robotino. With the Interface Box you can extend electrical signals without high wiring costs. Plug the connector cables of the electrical component into the sockets supplied. Then plug the sockets into the socket strips of the Interface Box. From the Interface Box a 50 pin connector cable leads to the connector strips of the control unit and chassis of the Robotino.

The interfaces on the Robotino are mirrored on the Interface Box. The designations on the Interface Box are identified by the ' sign. The Interface Box generates a 5 V voltage from the 24 V operating voltage, which can be used to supply sensors.
